3 In - 3 Out PP Fiber Optic Splice Closure Underground Wall Mounting Horizontal

  • 1
  • 2

Brand Name : KCO, Kocent Optec Limited

Model Number : Inline 3-3-04-x core

Certification : iSO9001, RoHS

Place of Origin : Guangdong, China

MOQ : Negotiation

Price : Negotiable

Payment Terms : T/T,L/C

Supply Ability : 50,000pcs/week

Delivery Time : 5~14 working days

Packaging Details : Carton box, wooden pallet

Type : Inline, horizontal type

Cable diameter : 8.0~22.0mm

Max capacity : 240 cores

Material : PPR, ABS, PC, PP

Weight : 5KG

Size : 460x200x220mm

Contact Now

3 In - 3 Out PP Fiber Optic Splice Closure Underground Wall Mounting Horizontal
Quick detail about horizontal fiber optic splice closure:
Name: Horizontal/inline fiber optical joint splice enclosure box
Part number: Inline 3-3-04
Cable entry port: 6 ports
Capacity of fibers: 240 cores
Size: 450*220*220mm
Weight: about 5kg
Material: ABS/ PC Plastic
Sealing structure: Silica gel
Cable Diameter: 7.0-22.0mm
Working temperature: -40℃ to 65℃
Applications:
  • Aerial, Direct buried, underground, pipeline, hand-holes, duct mountig, wall mounting.
  • Widely used in FTTH access network
  • Telecommunication networks
  • CATV networks
  • Data communications networks
  • Local area networks
Features:
  • Great corrosion resistance
  • Suitable for any harsh environment
  • Anti-lighting
  • Great water-proof function.

In-line 3-3-04 type fiber optic splice closure also call horizontal 3-3-04 type optical fiber splice enclosure box or optical fiber splice closure, or fiber splice enclosure box. We can provide Horizontal type fiber optic splice closure from 6 cores up to 288 cores for fiber optic cables connection use for aerial, underground, pipeline, hand-holes in Telecom project. The cable out-port can do 3 ports up to 10 ports. We also can supply vertical type of fiber optic splice enclosure box. Also, OEM Service is available, such as LOGO print, package, label, etc all can be customized.

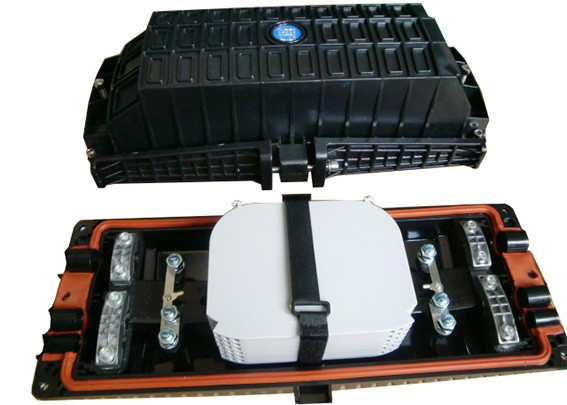

Product pictures:

3 In - 3 Out PP Fiber Optic Splice Closure Underground Wall Mounting Horizontal

3 In - 3 Out PP Fiber Optic Splice Closure Underground Wall Mounting Horizontal

Main parts:
No. Name Quantity Usage Remark
1 Crust 1 set Protecting fiber cable splices in whole
2 Fusion splice tray Max.4 tray Fix fiber, Protect heat-shrinkable tube Sleeve
3 Foundation 1 set Fix cable,reinforced core and tray
4 Seal fitting 1 set Air-proof between cover and bottom
5 Port plug 4 pieces Sealing empty ports
6 Valve 1 set Pressure measurement,inspection sealing Configure by user
Accessories list:
No. Name of accessories Quantity Usage Remarks
1 Heat shrinkable tube Protecting fiber splices Configuration as per capacity
2 Nylon tie Fixing fiber with protective coat Configuration as per capacity
3 Insulation tape 1 roll Enlarging diameter of fiber cable for easy fixing
4 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
5 Hanging hook 1 set For aerial use
6 Label tape 1 piece Sign fiber
7 Spanner 1 piece Install bolts of shell
8 Desiccant 1 bag Desiccating air.
OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:

According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
  • International express such as UPS, TNT, DHL, etc
  • Internatioal air: CA, AA, EA, etc
  • By sea
