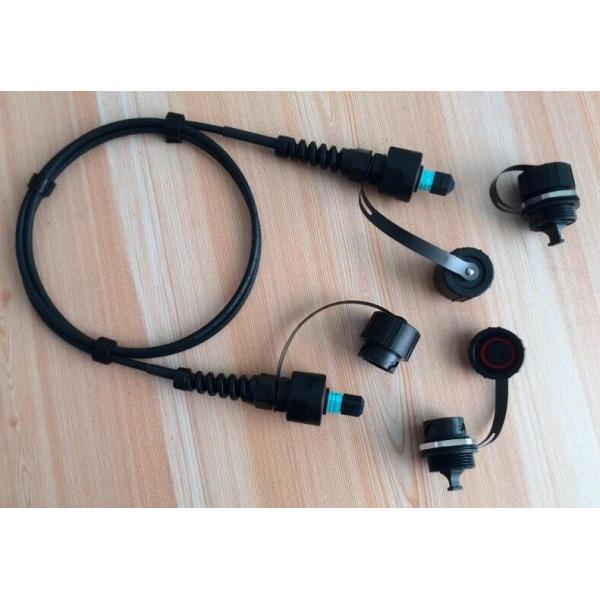

ODVA MPO OM3 Water Proof Fibre Optical Patch Cable for FTTA CPRI RRU LTE
Cable:
- Type1: LSZH + Kevlar + 2*Tight Buffer (4.8mm/7.0mm);
- Type2 :LSZH + Armoured + Kevlar + 2*2.0mm Cable (7.0mm);
- Type3: PE + Armoured + Kevlar + 2*2.0mm Cable (7.0mm);
- Type4 :LSZH + Armoured + Kevlar + 2*0.9mm Cable (4.8mm or 7.0mm);
- Type5: PE + Armoured + Kevlar + 2*2.0mm Cable (7.0mm);
- Type6: LSZH + Kevlar + 2*2.0mm Cable + 2*2.0mmTube (7.0mm);
- Type5: PE + Armoured + Kevlar + 2*2.0mm Cable (7.0mm);
Quick Information:
- Name: ODVA MPO to ODVA MPO OM3 patch cord
- Model Number: ODVA MPO
- Insertion Loss: <0.3db
- Return Loss:
- SM/UPC≥50dB,
- SM/APC≥60dB
- MM≥35dB
- Cable jacket size: 7.0mm, 4.8mm
- Cable Color: Black
- Cable material: PVC, LSZH, PE
- Mechanical life: 500 cycles
- Working temperature: -40°C~+70°C
- Protection level: IP67
- Tensile: ≥100N
KOCENT OPTEC LIMITED supply OEM and ODM service for all types of fiber optic patch cord.
Special in outdoor field operations fiber optic patch cord such as ODVA patch cord, NSN patch cord, PDLC patch cord, DLC patch cord, ODC patch cord, RRU patch cord, TPU patch cord, CPRI patch cord, Optitap patch cord, Mini SC patch cord, and OM3, OM4 patch cord.
We supply all kinds of field operations fiber optic patch cord with different types of water-proof connector, use for Telecom 3G, 4G, LTE, BBU, RRU, RRH base station.
With completed of production equipment and closed of QC process, we supply Telecom standard of goods to our customer.

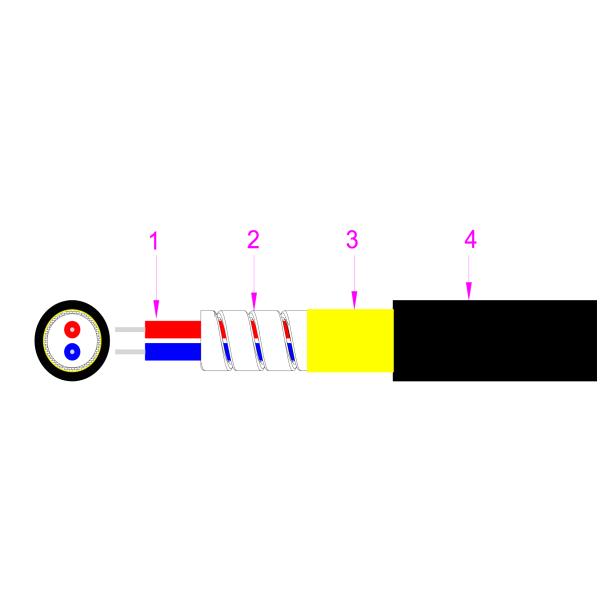

ODVA patch cord construction:
Specifications:
| Parameters |
Standard Fiber Cable Assemblies |
| Connector |
Side A: ODVA connector |
| |
Side B: ODVA connector, DLC(duplex LC), SC, ST, FC, MPO/MTP,... |
| Fiber count |
2 cores, 4 cores and more |
| Fiber Type |
SM (G.652D/G.657A) |
| |
MM (OM1/OM2/OM3) |
| Jacket Materials |
LSZH/ OFNR/ PVC/ PE |
| Cable diameter |
4.8mm, 7.0mm |
| Testing Wavelengths |
SM: 1310±30/1550±30nm |
| |
MM: 850±30/1300±30nm |
Insertion Loss(dB)
TIA/EIA-455-107 |
≤ 0.3dB(PC/UPC/APC) |
| ≤ 0.3dB(UPC) |
Return Loss(dB)
TIA/EIA-455-107 |
≥45dB (PC/UPC) |
| ≥55dB (APC) |
| ≥35dB (UPC) |
| Exchange ability |
≤ 0.2dB |
| Cable Assemblies |
Pigtail/ Simplex/ Duplex/ Fan-out Patch cord |
| Operating Temperature |
-14℃~+ 85℃ |
| Storage Temperature |
-40℃~+85℃ |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
