Mini Fiber Optic Junction Box Wall Mountable Wall1-1-02 Splice Enclosure
We can provide Horizontal type fiber optic splice closure from 4 cores up to 288 cores for fiber optic cables connection use for aerial, underground, pipeline, hand-holes in Telecom project. The cable out-port can do 3 ports up to 10 ports. We also can supply vertical type of fiber optic splice enclosure box. Also, OEM Service is available, such as LOGO print, package, label, etc all can be customized.
Quick detail about horizontal fiber optic splice closure:
- Name:
Mini zise wall-mounted fiber optic splice closure box
- Part number:
Wall1-1-02
- Cable entry port:
2 ports
- Capacity of fibers:
96 cores
- Size:
280*200*90mm
- Weight:
about 1.5kg
- Material:
PC Plastic
- Sealing structure:
Silica gel
- Cable Diameter:
7.0-22.0mm
- Working temperature:
-40℃ to 65℃
Features:
- Great corrosion resistance
- Suitable for any harsh environment
- Anti-lighting
- Great water-proof function.
Applications:
- Aerial, Direct buried, underground, pipeline, hand-holes, duct mountig, wall mounting.
- Widely used in FTTH access network
- Telecommunication networks
- CATV networks
- Data communications networks
- Local area networks

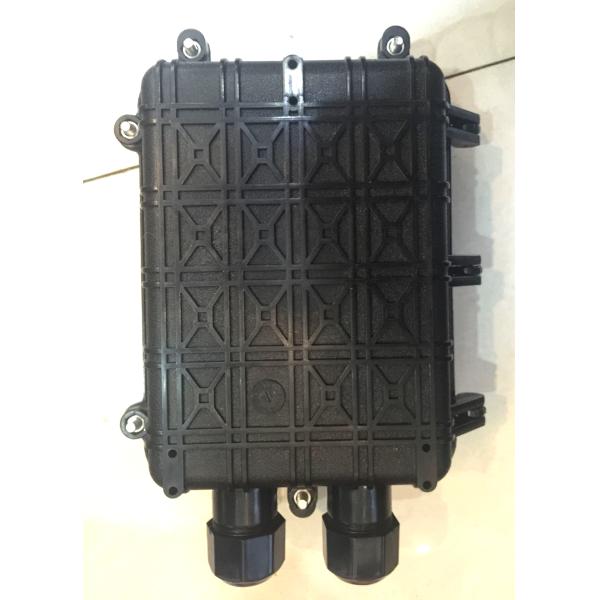

Product pictures:
Specification:
| Name |
1 in 1 out wall-mount mini size fiber optic junction splice closure box |
| P/N |
Wall1-1-02 |
| Material |
High-strength engineering plastics |
| Capacity |
Min: 4 cores, Max: 96 cores |
| Size |
280*200*90mm |
| Weight |
About 1.5kg |
| Working temperature |
-40°C~+65°C |
| Atmospheric pressure |
70~106KPa |
| Insulation resistance |
> 2*104MΩ |
| Compressive strength |
15KV/1min No breakdown No arcing |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
