Plastic Optical Fiber Identifier , Fiber Optic Cable Identifier KCO - OFI400 With VFL

  • 1
  • 2

Brand Name : KCO

Model Number : KCO-OFI400

Certification : ISO9001, RoHS, UL

Place of Origin : China

MOQ : Negotiation

Price : Negotiable

Payment Terms : Western Union,T/T,L/C

Supply Ability : 50000 pcs/month

Delivery Time : 2~3 working days

Packaging Details : Carton box, wooden pallet

Model : KCO-OFI400

Cable : 250um, 900m, 2.0mm, 3.0mm

Length wave : 800~1700 nm

Detector : Ø1mm InGaAs

Size : 230*43*48 (mm)

Weight : 0.2 (kg)

Contact Now

Plastic Optical Fiber Identifier KCO-OFI400 with VFL
The KCO-OFI400 is an advanced fiber optic identifier featuring micro-bend technology for non-disruptive online testing. This versatile tool works with both single-mode and multimode networks while adding visual fault location capabilities for comprehensive fiber optic maintenance.
Key Features
  • Durable plastic construction with lightweight design
  • Integrated Visual Fault Locator (VFL) for short-distance troubleshooting
  • Universal single adapter accommodates all connector types (≤3mm diameter)
  • Non-intrusive in-line testing without service interruption
  • Clear signal direction and modulation display
  • Relative core power measurement
  • Low power indication and 60-hour battery life
Technical Specifications
Model KCO-OFI400
Wavelength Range 800~1700 nm
Detector Type InGaAs
Connector Size <3 mm
Modulation Frequencies CW/270/1K/2K Hz
Power Test Range (CW/0.9mm) -35~10 dBm
Insertion Loss <1 dB
VFL Wavelength 650 nm
VFL Output Power 10 mW
Battery 2 AA batteries
Operating Time 60 hours
Operating Temperature 0~+50°C
Dimensions 230×43×48 mm
Weight 200 g
Standard Accessories
Fiber Optic Identifier KCO-OFI400 1 unit
Batteries 2 AA batteries
User Manual 1 copy
Carrying Bag 1 unit

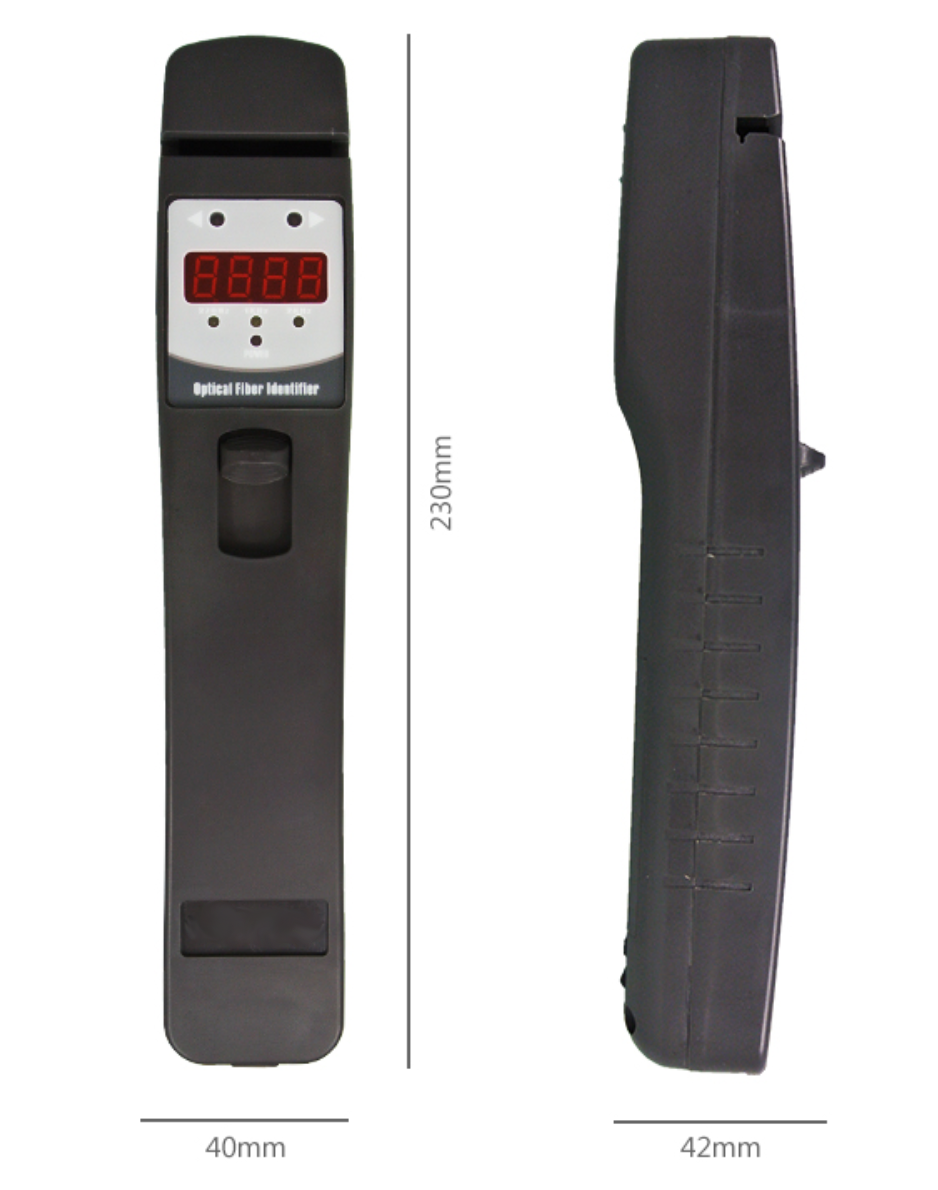

Product Images
Plastic Optical Fiber Identifier , Fiber Optic Cable Identifier KCO - OFI400 With VFL
Plastic Optical Fiber Identifier , Fiber Optic Cable Identifier KCO - OFI400 With VFL
Plastic Optical Fiber Identifier , Fiber Optic Cable Identifier KCO - OFI400 With VFL
Packaging & Shipping
Packaging: Carton box with wooden pallet
Shipping Options: International express (DHL, UPS, TNT), international air freight, or sea freight
