Space Saving Fiber Optic Terminal Box IP65 Protection Level Easy Installation

Brand Name : KCO, Kocent Optec Limited

Model Number : KCO-ODP-16W

Certification : ISO9001

Place of Origin : Guangdong, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : Western Union,T/T,L/C

Supply Ability : 20,000 pcs/ month

Delivery Time : 7~14 days after get payment

Packaging Details : carton box, wooden pallet

Material : ABS+PC

Insertion loss : 0.15dB

Return loss : 55dB

Connector : SC, ST, LC, FC, E2000, etc

Application : outdoor

Capacity : 16 fibers fo

Contact Now

Space Saving Fiber Optic Terminal Box IP65 Protection Level Easy Installation
Product Overview
KCO-ODP-16W outdoor water-proof fiber optic splitter distribution box supports up to 16 subscribers in FTTx network systems. This robust enclosure serves as a termination point connecting feeder cable to drop cable, integrating fiber splicing, splitting, distribution, storage, and cable connection in one protective housing.
Key Features
  • Constructed from durable ABS+PC material for strength and lightweight performance
  • IP65 water-proof rating for reliable outdoor operation
  • Easy wall mount installation with included installation kits
  • Tool-free adapter installation with dedicated adapter slots
  • Pre-designed space for adding optical splitters
  • Space-saving double-layer design for efficient installation and maintenance
  • Lower layer accommodates splitters and excess fiber storage
  • Upper layer provides space for splicing, cross-connecting, and fiber distribution
  • Integrated cable fixing units for securing outdoor optical cables
  • Compatible with both cable glands and tie-wraps
  • Security lock included for added protection

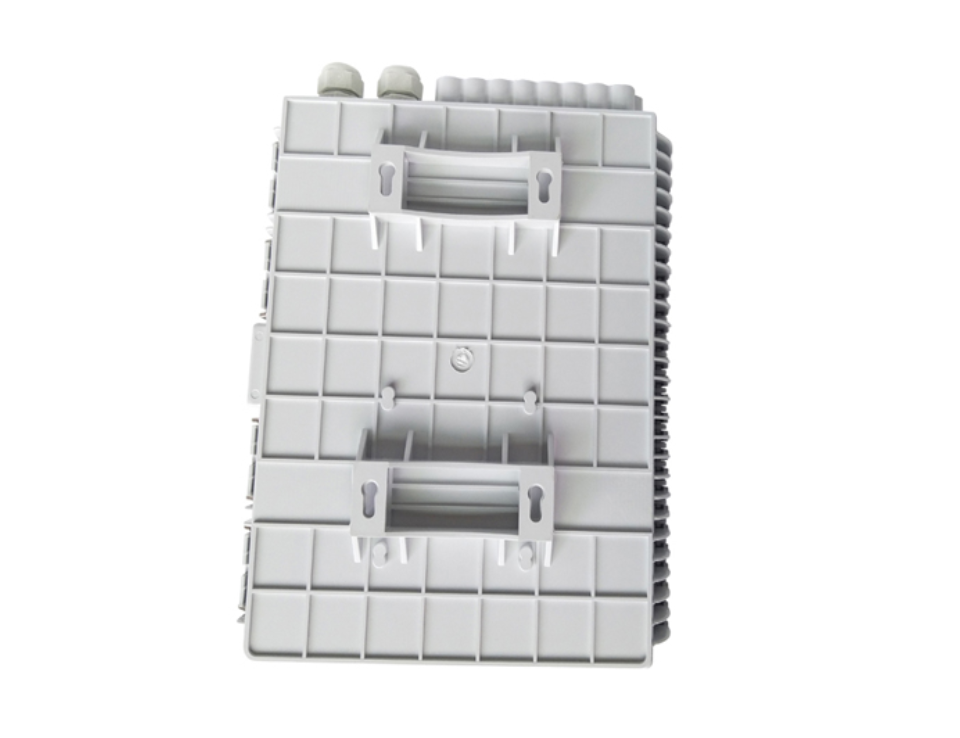

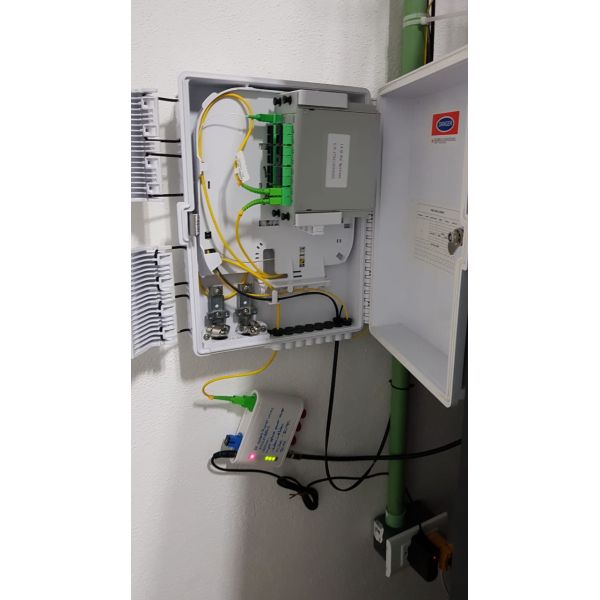

Installation Method
Space Saving Fiber Optic Terminal Box IP65 Protection Level Easy Installation Space Saving Fiber Optic Terminal Box IP65 Protection Level Easy Installation

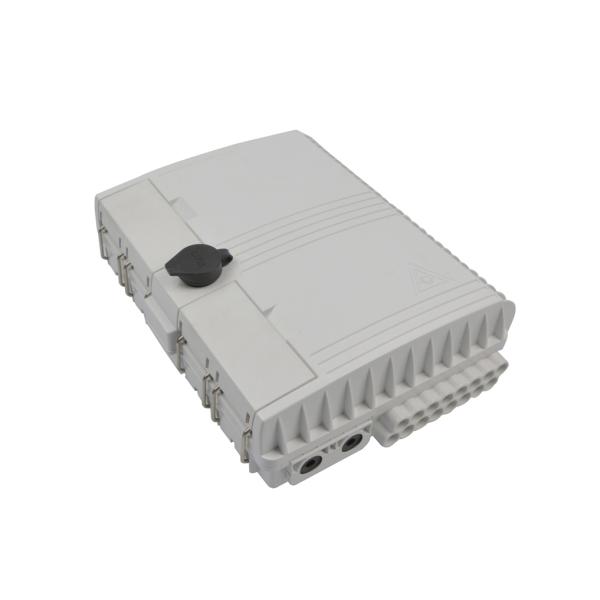

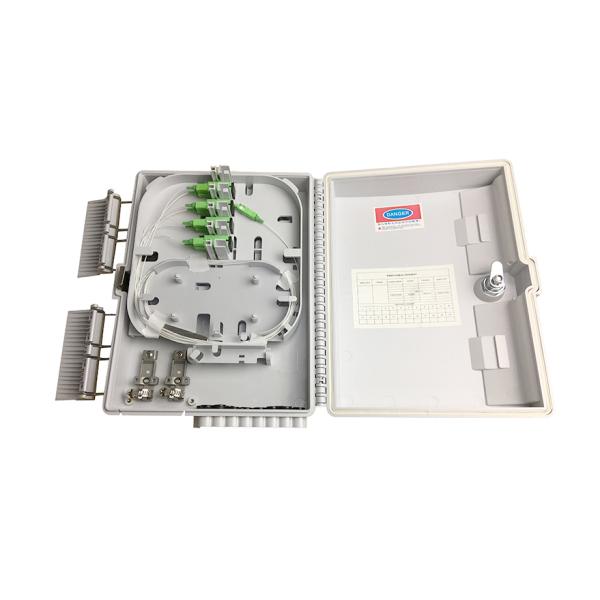

Product Images
Space Saving Fiber Optic Terminal Box IP65 Protection Level Easy Installation Space Saving Fiber Optic Terminal Box IP65 Protection Level Easy Installation Space Saving Fiber Optic Terminal Box IP65 Protection Level Easy Installation Space Saving Fiber Optic Terminal Box IP65 Protection Level Easy Installation
Technical Specifications
Parameter Specification
Operating Temperature -25°C to +45°C
Relative Humidity ≤95% (40°C)
Atmosphere Pressure 70KPa to 106KPa
Insulated Resistance ≥2×10⁴MΩ/500v(DC)
Dielectric Strength ≥15KV(DC)/1min, no spark-over and no flying arc
Fiber Bend Radius ≥40mm
Optical Performance
Parameter Value Capacity
Insertion Loss ≤0.2dB 1×16 PLC Splitter, 2×16 PLC Splitter
SC/LC/FC/ST/E2000 Adapter
UPC Return Loss ≥50dB -
APC Return Loss ≥60dB -
Product Details
Item KCO-ODP-16W
Material PC+ABS
Dimension 292×218×83mm
Max Capacity 16 ports SC
Installation Size D154×E82mm
Weight 1.5kg
Outer Carton Size 68×48×42cm
Outer Carton Weight 19kg
Carton Quantity 12pcs
20GP Container Capacity 2500pcs
Color White or Black
Model Dimensions
Model Capacity Dimension (L×W×H) Weight
KCO-ODP-16W 1×16 PLC Splitter, 16 SC Adapters
2×16 PLC Splitter, 16 SC Adapters		 292×218×83 mm 1.5kg
