SC/UPC Fiber Optic Adapter with OM3 OM4 Compatibility for High-Speed Data Networks

  • 1
  • 2
  • 3

Brand Name : KCO, Kocent Optec Limited

Model Number : SC/UPC-FLANGE-CAP-DX

Certification : ISO9001, RoHS

Place of Origin : Guangdong, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : Western Union,T/T,L/C

Supply Ability : 500,000pcs/month

Delivery Time : 2~5 days after get payment

Packaging Details : Plastic module, carton box, wooden pallet

Type : SC/UPC

Sleeves material : Ceramic (ZrO2)

Material : Plastic

Chanel way : Duplex

Color : Blue

Repeat ability : 0.10dB

Contact Now

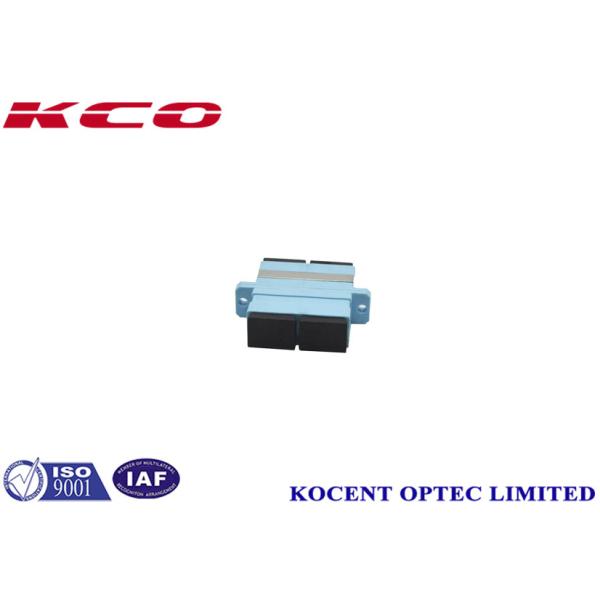

SC/UPC Fiber Optic Adapter - Blue Duplex with Flange and Dust Cap
This high-performance fiber optic adapter (also known as fiber optic coupler) provides reliable cable-to-cable fiber connections. Available in SC/UPC configuration, it supports both single mode (UPC/APC) and multimode (PC) patch cable connections.
Key Applications
  • Data Processing Networks
  • Telecommunication networks
  • Industrial, Medical & applications
  • LANS, MANS, WANS
  • CATV systems
Product Advantages
  • Consistent quality verified through rigorous testing
  • Fully interchangeable with industry-standard devices
  • Superior low loss performance with high repeatability
  • Compliant with Telcordia 100BaseFX Technologies standards
Key Features
  • Compact, space-saving design
  • High precision alignment for optimal performance
  • Zirconia sleeve construction
  • Optional flange configuration
  • Low insertion loss and high return loss
  • Compliant with IEC, Telcordia GR 326 and JIS standards
SC/UPC Fiber Optic Adapter with OM3 OM4 Compatibility for High-Speed Data Networks
Technical Specifications
Parameter Specifications
Mating Connector Type SC, LC, FC, ST, MU, D4, DIN, E2000, SMA, etc
Fiber Type Single Mode | Multimode
Adapter Color Blue, green, metallic | Beige, Metallic
Testing Wavelength 1310nm,1550nm | 850nm,1300nm
Insert Loss Typical≤0.15dB, max≤0.2dB
Repeatability ≤0.10dB
Exchangeability ≤0.20dB
Durability 1000Mating, max≤0.20dB
Housing Material Plastic or metal
Operating Temperature -20°C～+70°C
Storage Temperature -40°C～+85°C
Alignment Sleeve Ceramic (ZrO2) or customized
Channel Number Simplex, duplex, quad
Reliability Testing
Test Name Additional Insertion Loss Additional Return Loss
Mechanical durability <0.2dB <5dB
Repeatability <0.2dB <5dB
Lock strength <0.2dB <5dB
Low strength <0.2dB <5dB
High temperature <0.2dB <5dB
Steaming <0.2dB <5dB
Temperature cycle <0.2dB <5dB
Vibration <0.2dB <5dB
Drop <0.2dB <5dB
Customization Services
We offer OEM/ODM services to brand products with your logo on cables, packaging, labels, or any other visible components.
Packaging & Shipping
  • Standard export packaging options
  • Carton box, wooden box, or wooden pallet configurations
  • Shipping via international express (UPS, TNT, DHL), air freight (CA, AA, EA), or sea transport
