SC UPC Fast Connector for FTTH Applications with No Special Tool Reusable Design and Low Insertion Loss

Brand Name : KCO

Model Number : FAST-55/60-SC-UPC

Certification : ISO9001, RoHS

Place of Origin : Guangdong, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : Western Union,T/T,L/C

Supply Ability : 100,000pcs/month

Delivery Time : 2~5 days after get payment

Packaging Details : PE bag, carton box, wooden pallet

Type : FAST SC

Color : Blue, White

Insertion loss : 0.2dB

Return loss : 55dB

Mode : single mode, multi mode

Length : 55mm, 60mm

Contact Now

FTTH Solution Product SC UPC Fast Quick Connector 60mm 6cm

FTTH Solution Product SC/UPC Fast Connector is a quick connector designed for field-assembled optical fiber connections. It's widely used in fiber-to-the-home (FTTH) access optical networks for rapid drop cable assembly.

Key Features

Twin end-face of pre-embedded fiber is factory polished
Fiber optics aligned in V-groove through ceramic ferrule
Side cover design provides complete preservation of matching liquid
Ceramic ferrule with pre-embedded fiber polished to APC
Controllable FTTH cable length
Simple tooling, easy operation, portable style and reusable design
Standard connector size: 49.5×7×6mm or customizable per client request

Advantages

No special assembling tools required
Easy assembly with mechanical splice - no polishing needed
Quick learning curve (assembly within 1.5 minutes)
Low defect rate with removal and reusable features

Applications

CATV networks
Telecommunication networks
Test equipment
Local Area Networks (LANs)
Data processing networks
Industrial and applications

Technical Specifications

Item	Parameter
Cable Scope	3.0 x 2.0 mm Bow-type Drop Cable
Fiber Diameter	125μm (652 & 657)
Coating Diameter	250μm
Mode	SM
Operation Time	about 15s (exclude fiber presetting)
Insertion Loss	≤ 0.25dB (1310nm & 1550nm)
Return Loss	≤ -45dB
Success Rate	>98%
Reusable Times	>10 times
Tensile Strength	>5 N
Tighten Strength of Coating	>10 N
Temperature Range	-40~+85°C
On-line Tensile Strength Test (20 N)	IL ≤ 0.3dB
Mechanical Durability (500 times)	IL ≤ 0.3dB
Drop Test (4m concrete floor, once each direction, three times total)	IL ≤ 0.3dB

SC UPC Fast Connector for FTTH Applications with No Special Tool Reusable Design and Low Insertion Loss

OEM/ODM Services

We offer custom branding services for your logo on cables, packaging bags, labels, or any requested location. Our OEM and ODM services are available to meet your specific requirements.

Packing & Shipping

Standard export packing options include carton boxes, wooden boxes, and wooden pallets. Shipping methods available:

International express (UPS, TNT, DHL, etc.)
International air freight (CA, AA, EA, etc.)
Sea freight

Product Tags:

ftth fast connector

quick connect fiber optic connectors

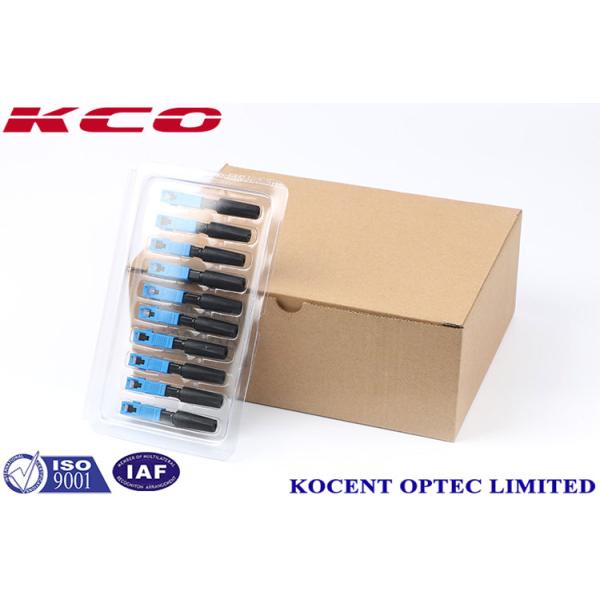

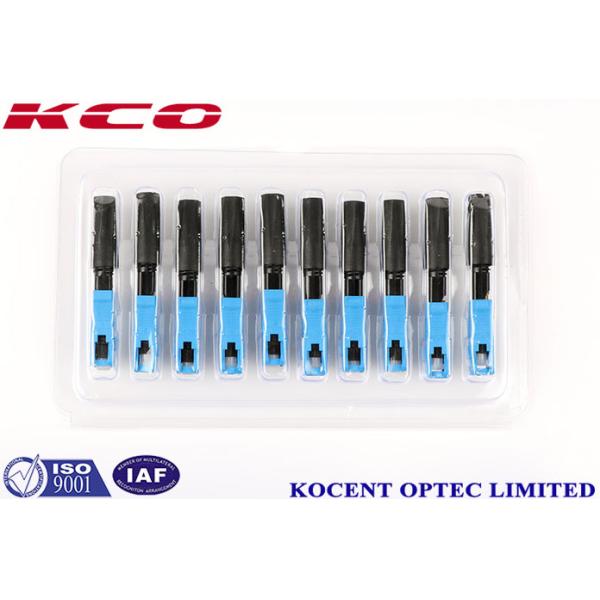

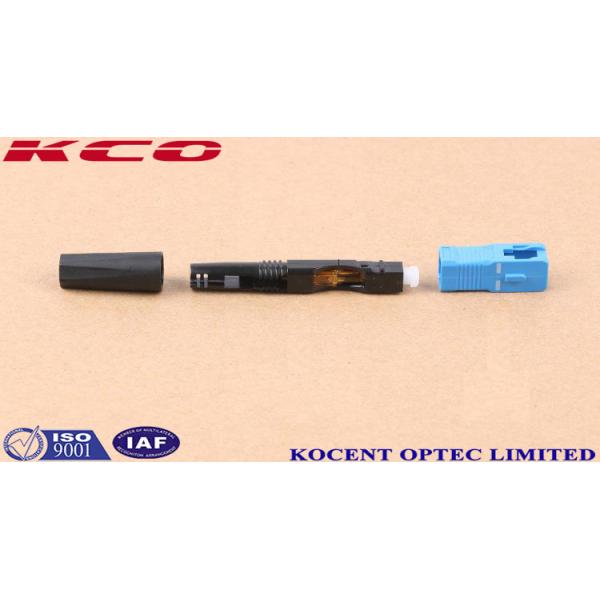

SC UPC Fast Connector for FTTH Applications with No Special Tool Reusable Design and Low Insertion Loss Images
